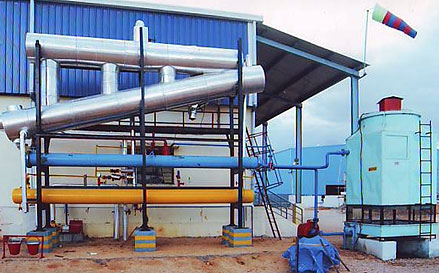

Bolt-on CO2 Recovery from Dry Ice Production
Increase your dry ice production by up to 70% while using the same amount of liquid CO2. Our bolt-on CO2 recovery systems capture vented gas during dry ice manufacturing and recycle it back into the production process.
Enquire About CO2 Recovery Contact Our Team
Recover, Recycle, Save
Conventional dry ice production loses a large fraction of liquid CO2 as vented gas. A bolt-on recovery system captures that vent gas, re-liquefies it, and feeds it back into the dry ice press — closing the loop without changing the dry ice press itself.
- 70% more output — from the same liquid CO2 supply
- Conversion ratio improved — from 2.2 lbs LCO2 : 1 lb dry ice → 1.3 lbs LCO2 : 1 lb dry ice
- 90-95% final conversion rate — vs standard ~45%
- 50% reduction in liquid CO2 costs
- 135 kWh or less per ton of CO2 recovered
- ROI in 12 months or less
- No impact on dry ice quality — closed-loop, contamination-free
- Modular design — start small and scale up
How It Works
Step 1 — Capture
Vent gas from the dry ice press is collected at low pressure instead of being released to atmosphere.
Step 2 — Clean & Dry
Captured gas passes through filtration and an optional dryer module to remove moisture and contaminants.
Step 3 — Re-liquefy
The cleaned gas is compressed and liquefied back to LCO2 at ~135 kWh or less per ton recovered.
Step 4 — Recycle
Recovered LCO2 is fed back into the dry ice press, closing the loop and lifting overall conversion to 90-95%.
With vs Without Bolt-on Recovery
| Parameter | Without Recovery | With Bolt-on Recovery |
|---|---|---|
| LCO2 per kg dry ice | ~2.2 lbs : 1 lb | ~1.3 lbs : 1 lb |
| Final conversion rate | ~45% | 90-95% |
| Dry ice output (same LCO2 supply) | Baseline | +70% |
| Liquid CO2 cost | Baseline | -50% |
| Vent loss to atmosphere | Significant | Minimal — closed loop |
| Energy per ton recovered | — | ≤ 135 kWh/ton |
| Dry ice quality | Standard | Unchanged — contamination-free |
Key Specifications
| Parameter | Specification |
|---|---|
| System type | Bolt-on, modular, skid-mounted |
| Final conversion rate | 90-95% |
| Energy consumption | ≤ 135 kWh per ton CO2 recovered |
| Output uplift | Up to 70% more dry ice from same LCO2 |
| LCO2 savings | Up to 50% reduction |
| ROI | 12 months or less, depending on plant size |
| Compatibility | Compatible with most existing dry ice presses |
| Scalability | Modular — start small, expand as production grows |
Optional Add-ons
CO2 Gas Dryer System
Dries the recovered gas to maintain LCO2 quality and protect downstream equipment from moisture-related issues.
Energy Efficiency Package
Optimised compression, heat recovery and control logic — reduces overall energy consumption by up to a further 10%.
Key Benefits
- Up to 70% more dry ice from the same LCO2 supply
- 50% reduction in liquid CO2 costs
- Conversion rate lifts from ~45% to 90-95%
- ROI typically inside 12 months
- Closed-loop — no impact on dry ice quality
- Modular design scales with your plant
- Compatible with existing dry ice presses
- Lower vented emissions to atmosphere
Get Started with Bolt-on CO2 Recovery
Tell us your current dry ice production and LCO2 consumption — we will size a system and estimate your savings and ROI.
